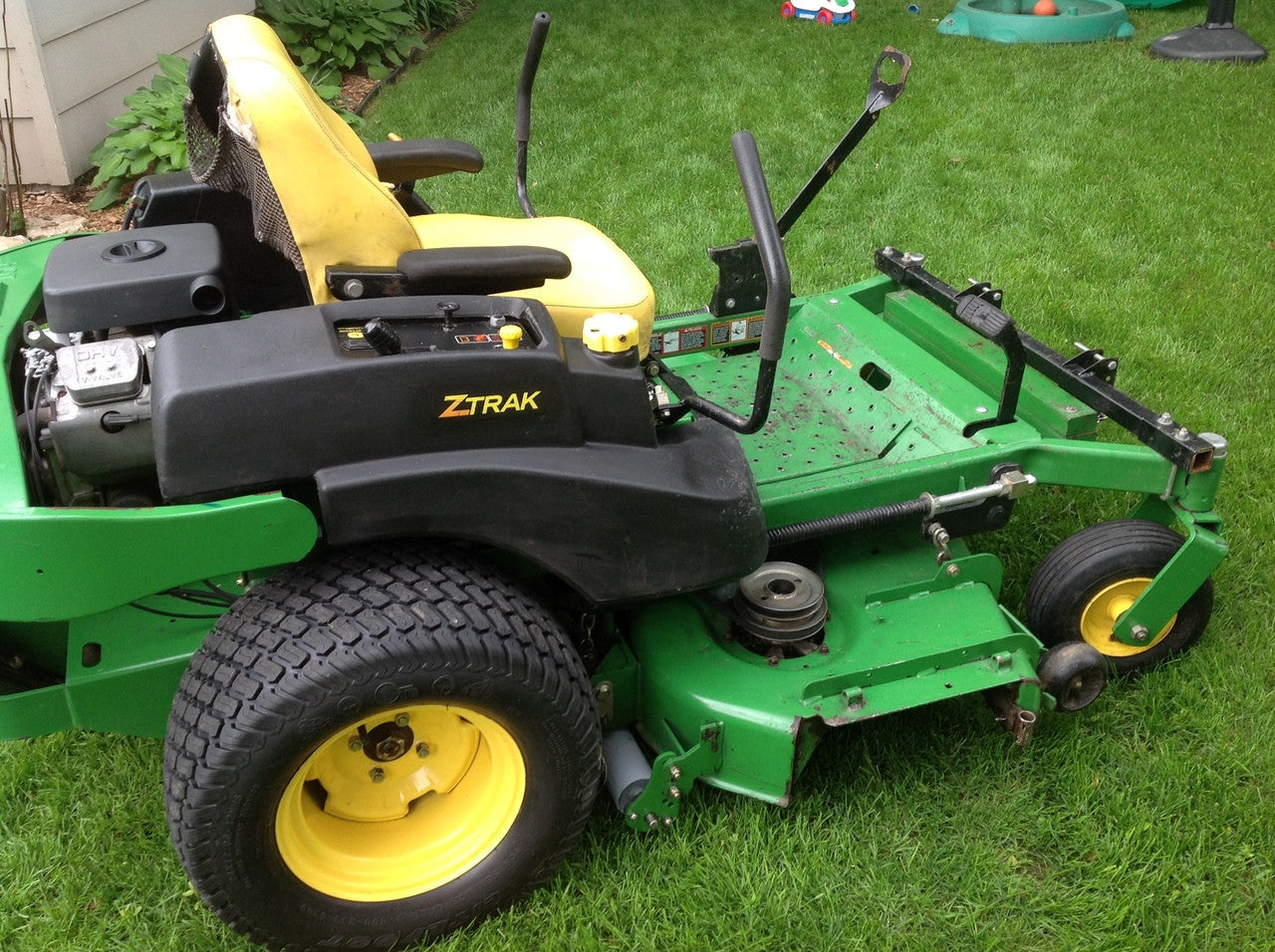

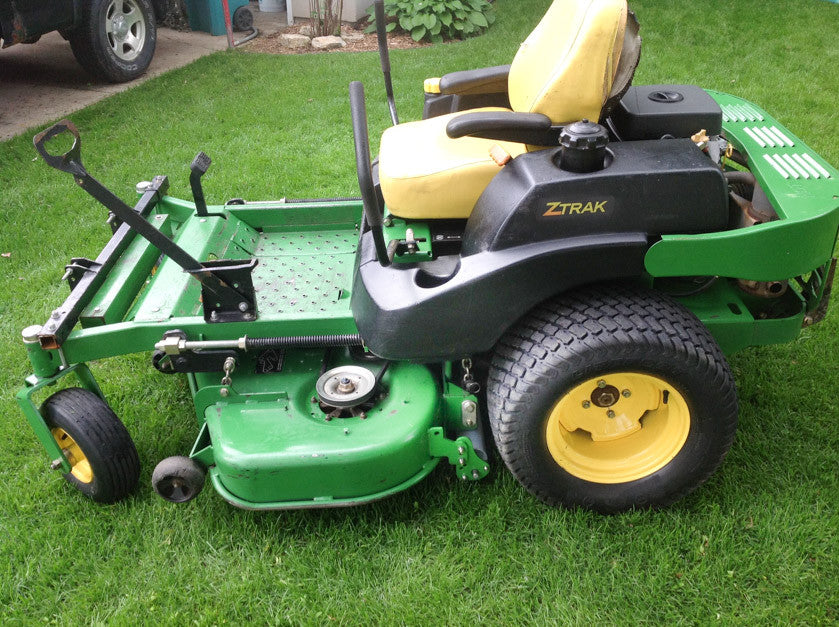

Lawn Striping Kit for 04 John Deere 737 Z-Trak with 54" 7 Iron deck
Bolts to the anti-scalp wheel brackets after the predrilled holes in the brackets are drilled out to 3/8". No other modifications to the machine are required.
Please measure the distance between the anti-scalp wheel brackets on your machine. That distance should be approximately 47" inches inside to inside.

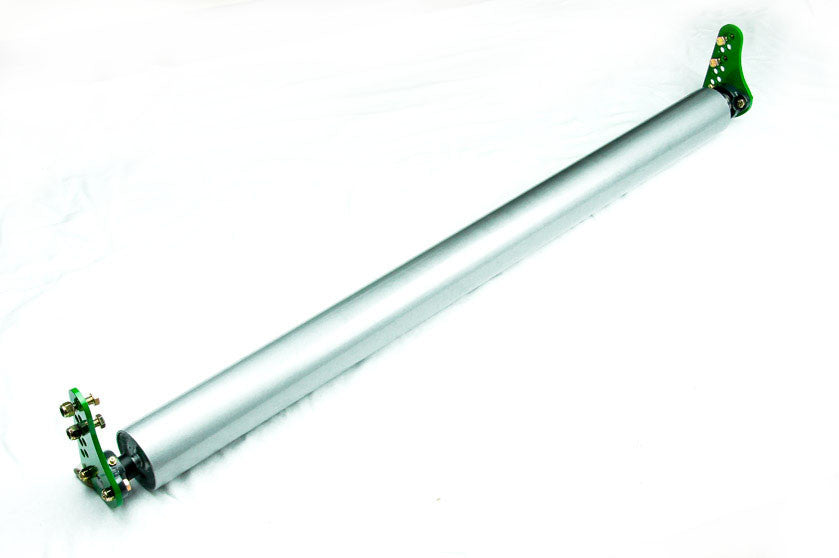

Dimensions: Mounting shaft 48" length - Roller 3 inch diameter by 43" length.
Made in Ramsey Minnesota by Harrison Specialties - Manufacturing aftermarket lawn mower striping kits since 2006 with thousands in service.
.
Customer service and technical inquiries always welcome. Please email or text/call 763-201-8984.
Special Features
Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.

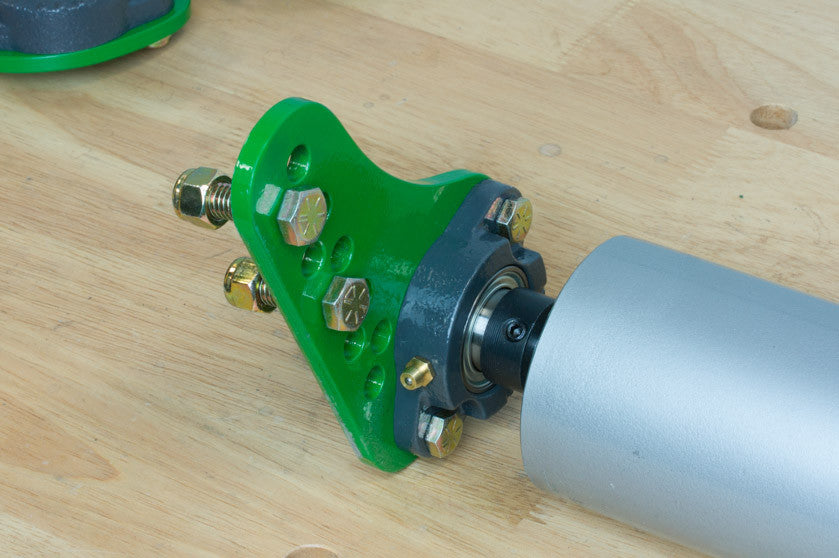

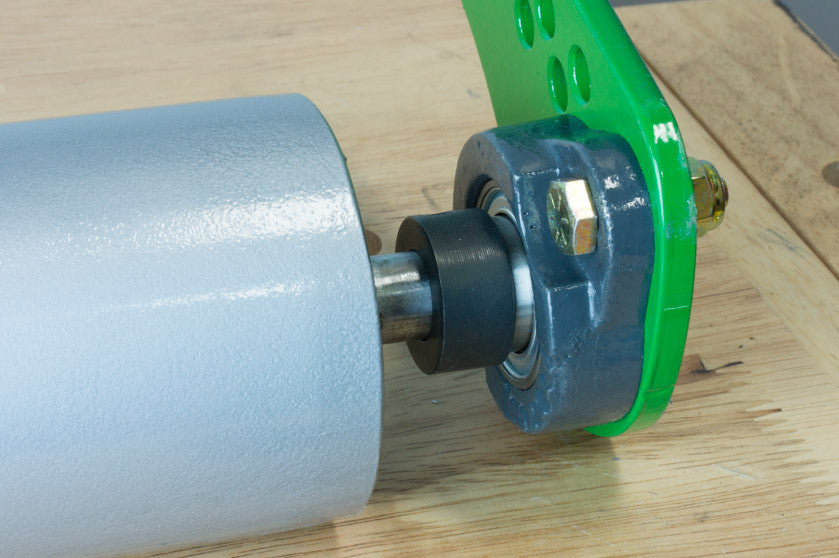

Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.

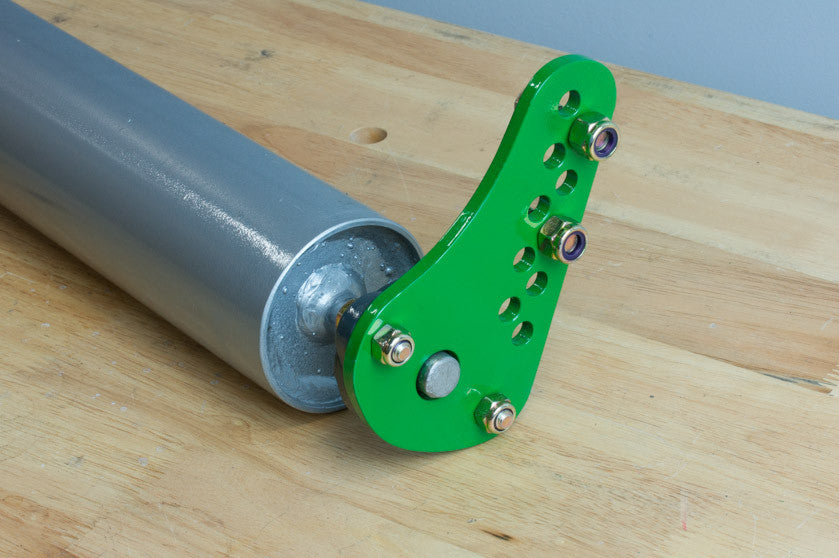

All steel welded roller construction. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
Bolts are hardened grade 8
Nuts are hardened grade 8 with nylon locking inserts.
Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.
Other Features
Does not hinder the ability to scale curbs.
This lawn striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
Gives lawns that professionally striped ball park look.

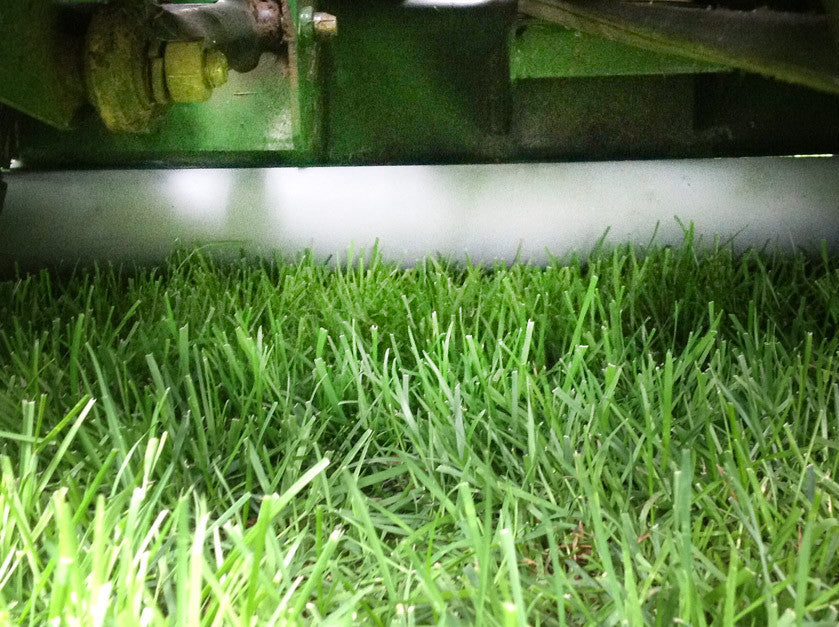

Now you can mow and roll in one operation.

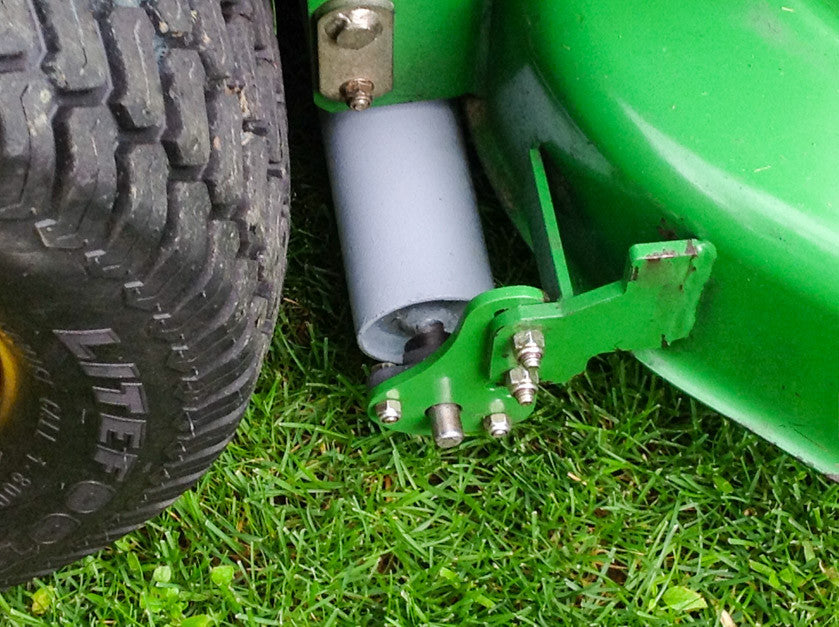

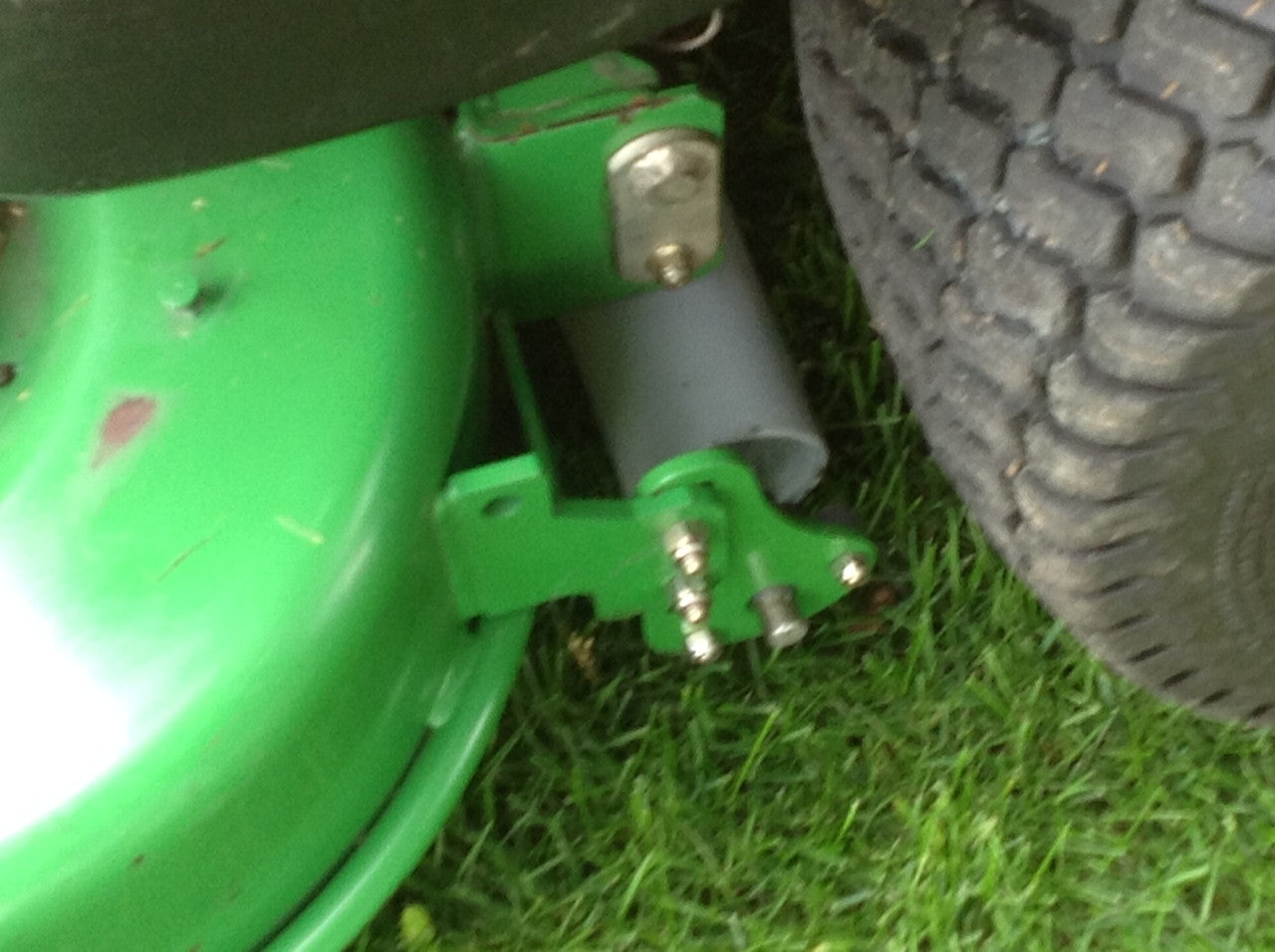

Mounts on the mower deck anti-scalp wheel brackets.
Please measure your deck to insure the proper fit. The distance between the anti-scalp will brackets should be 47" inside to inside.
Special thanks to Turf Enterprises Inc., a local company that sent the photos shown here demonstrating the results of our lawn stripers on their customers rolling lawn. They are running our turf stripers on 2014 John Deere Pro 7 Iron mowers.
