eXmark Lazer with 66" or 72" Triton Deck Lawn Striping Kit
Fits Lazer Z & Lazer Z XS units (all years) with a serial number 600,000 and higher.

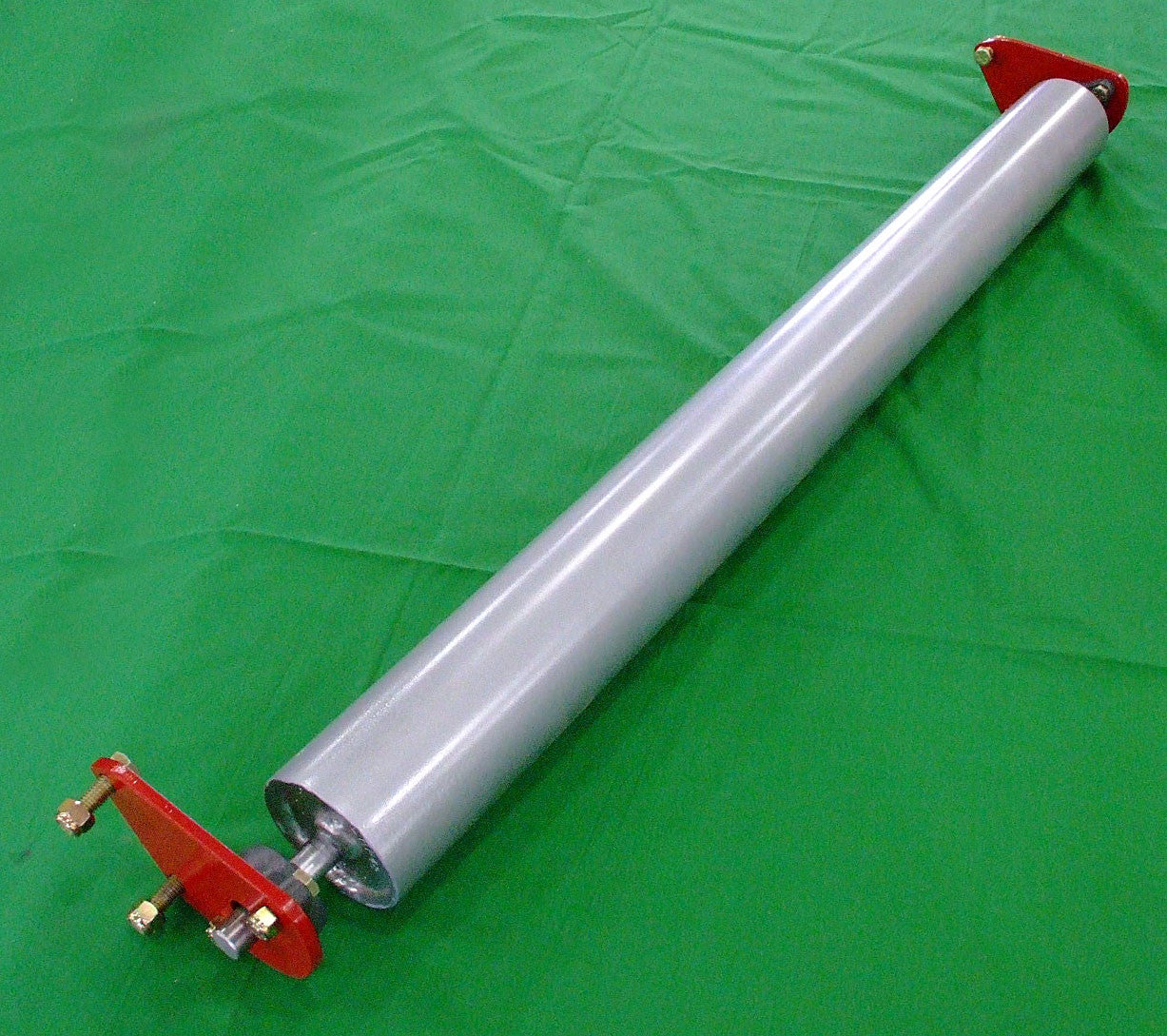

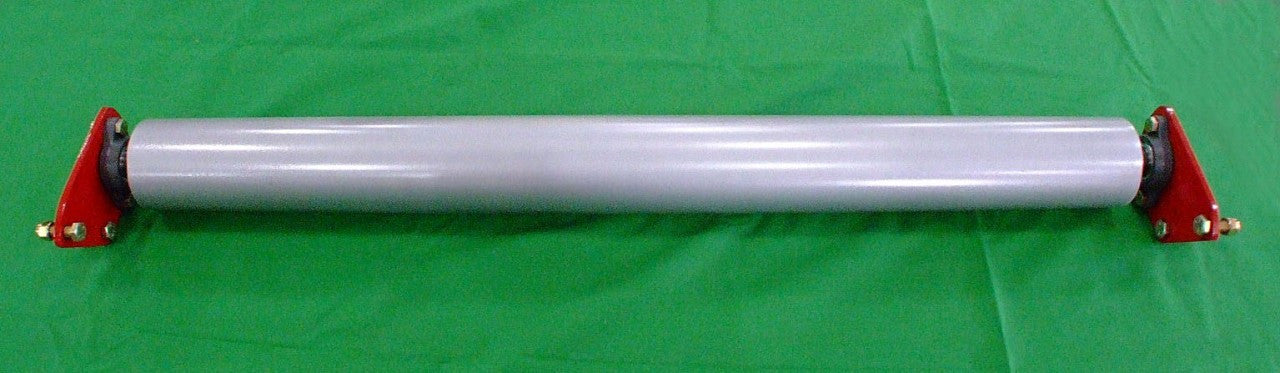

Dimensions: Mounting shaft 39" length - Roller 3 inch diameter by 34" length.

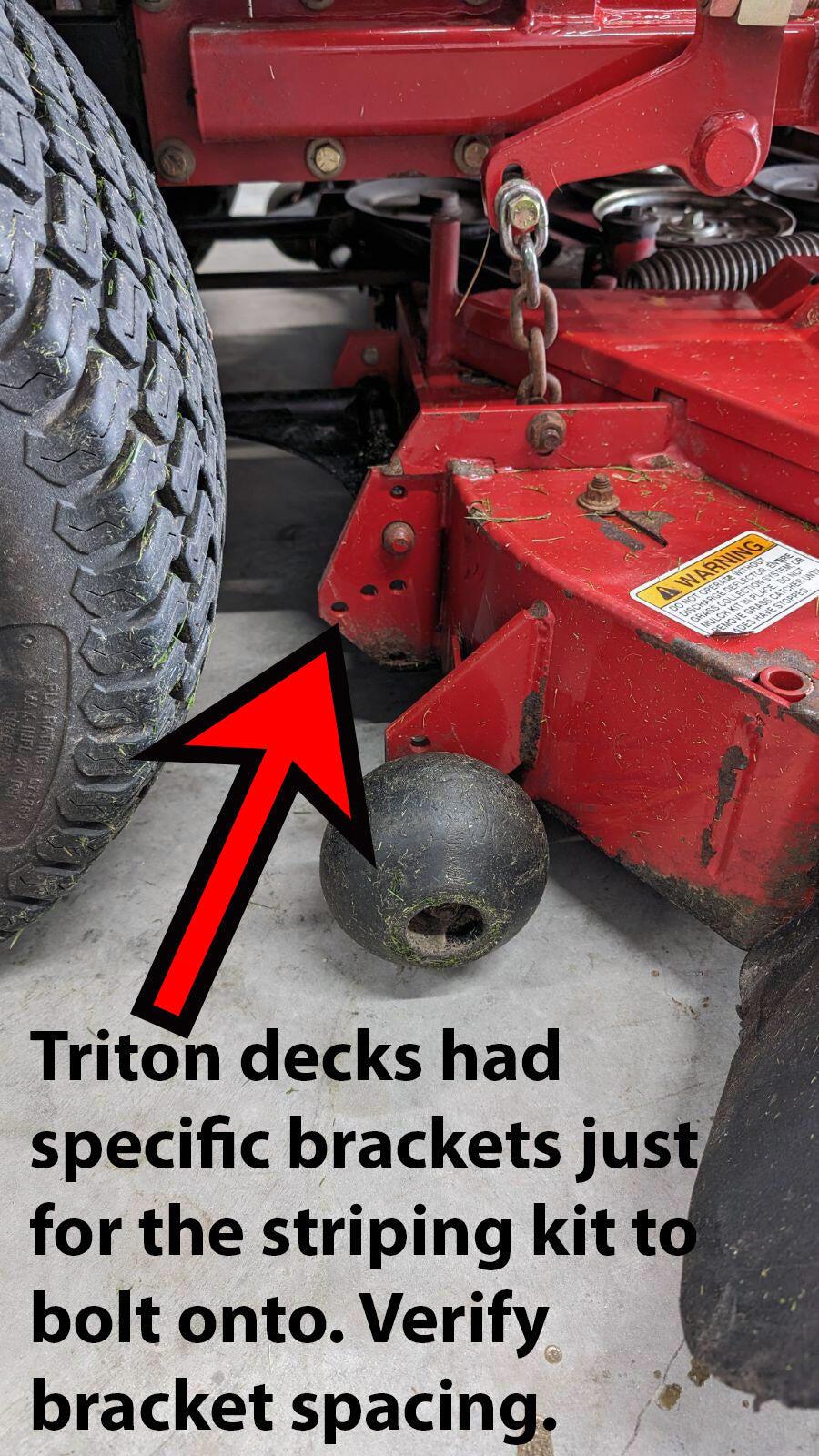

- Fits all years with a serial number 600,000 and higher with lawn striper brackets on the deck spaced approximately 39" apart.(NOT the rear anti-scalp wheel brackets)
- If your mower has lawn striper bracket spacing different than 39", please contact us prior to ordering to make sure you're getting the proper lawn striper. We have lots of roller sizes in stock.
Lazer Z Advantage Series (AS) use the Ultra Cut deck even though the serial number is higher than 600,000. This lawn striping kit will not fit the Ultra Cut deck. The AS mowers need the lawn striper for the Ultra Cut deck.
Special Features
- Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.

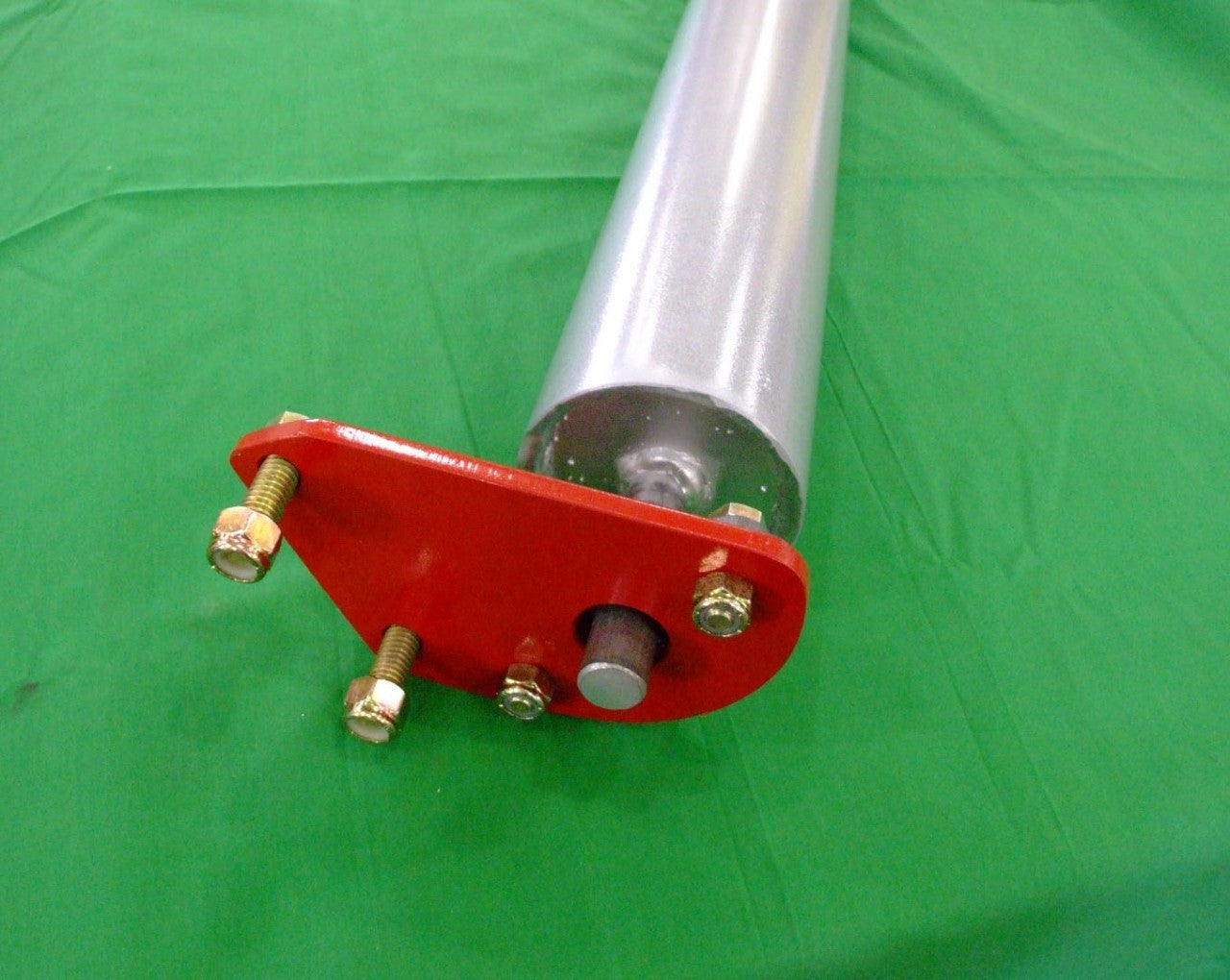

- Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
- All steel welded roller construction. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
- Bolts are hardened grade 8
- Nuts are hardened grade 8 with nylon locking inserts.

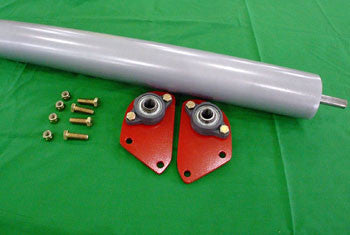

- Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.
Other Features
- Does not hinder the ability to scale curbs.
- This lawn striping kit enhances the striping performance of your mower to produce a beautifully manicured lawn.
- Gives lawns that professionally striped ball park look.
- Now you can mow and roll in one operation.
- Mounts on the mower deck lawn striper brackets. (NOT anti-scalp wheel brackets)
- Please measure your deck to insure the proper fit.
A local customer, Turf Enterprises Inc., sent the photos in this listing showing the results of our lawn stripers on their customers rolling lawn. They are running our lawn stripers on a 60" and 52" eXmark Lazer Z with Ultra Cut mowers.
Made in Ramsey Minnesota by Harrison Specialties - Manufacturing aftermarket lawn striping kits since 2006 with thousands in service.
Customer service and technical inquiries always welcome. Please email or text/call 763-201-8984.
