Lawn Striping Kit for 17-22 eXmark Radius S-Series 52" Ultra Cut Series 3 Deck.
How do I know if it'll fit? Here's How:
To verify this lawn striper will fit your machine measure the distance outside to outside between the rear anti-scalp wheel brackets on your deck.
The distance between those brackets should be about 46.5", measuring outside to outside.
Verify your model number begins with RAS.

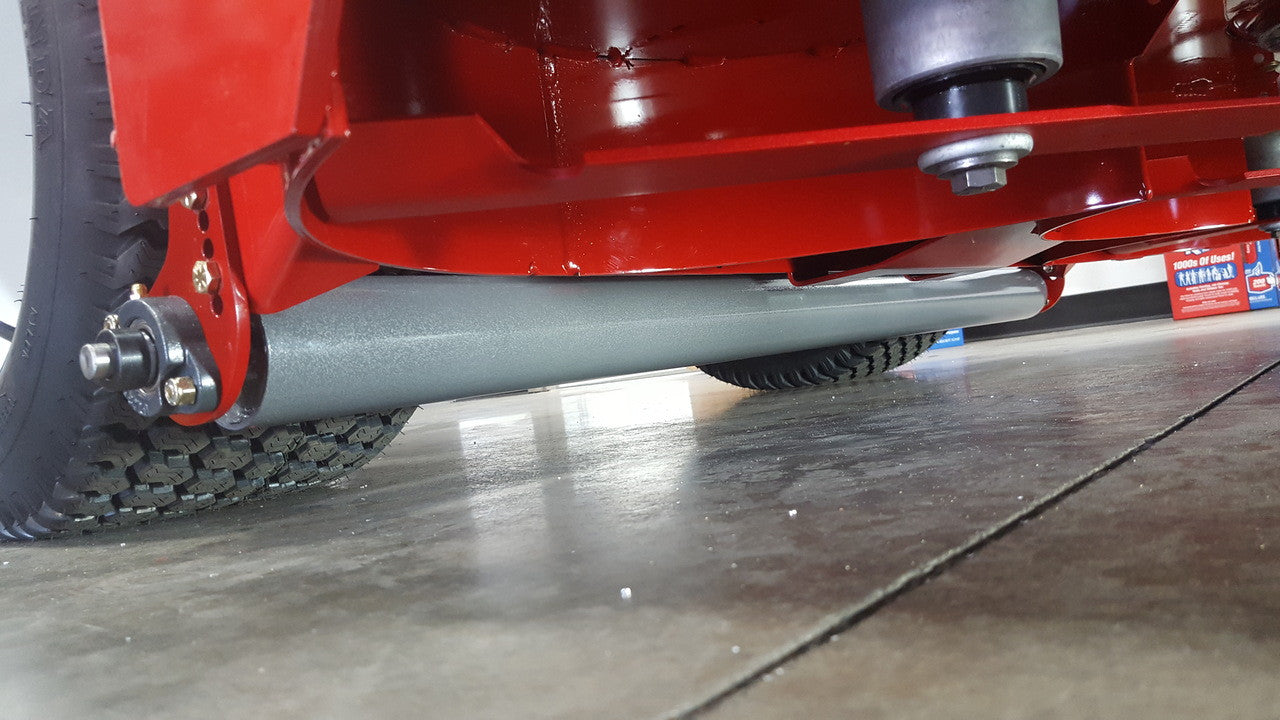

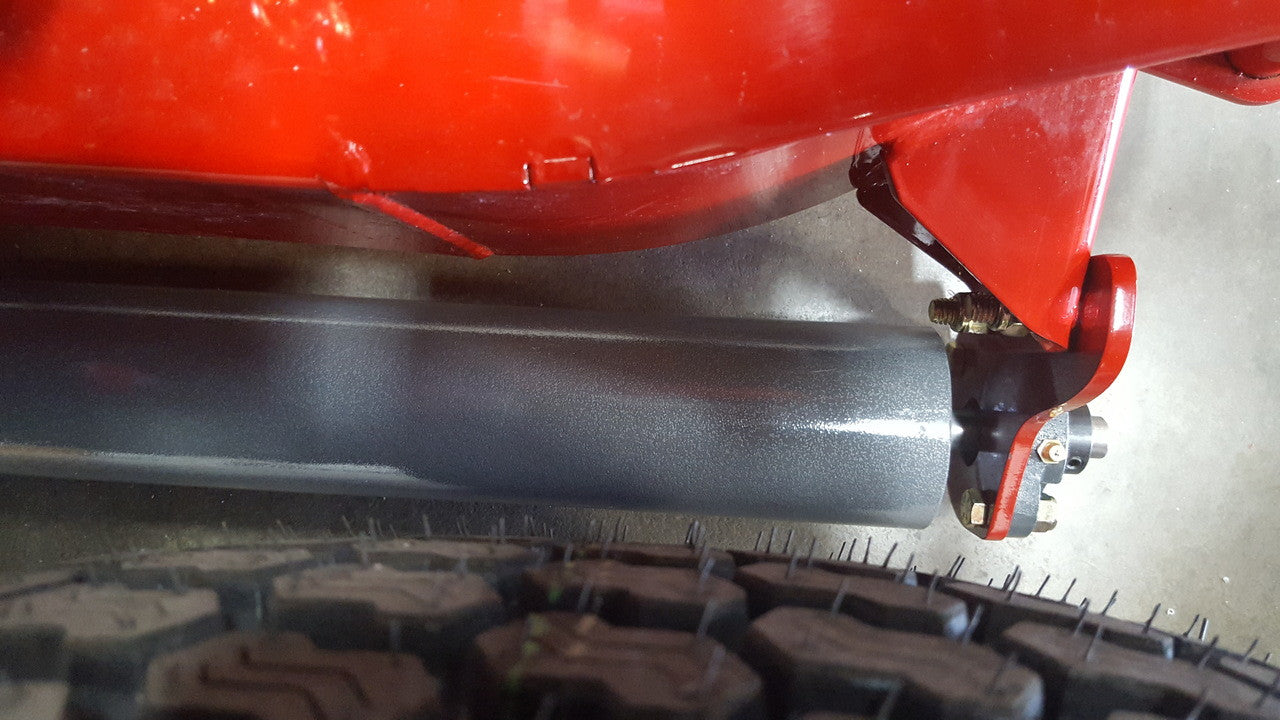

We are not bolting this kit into the pre-drilled holes, we are bolting onto the rear-anti scalp wheel brackets and here's why:

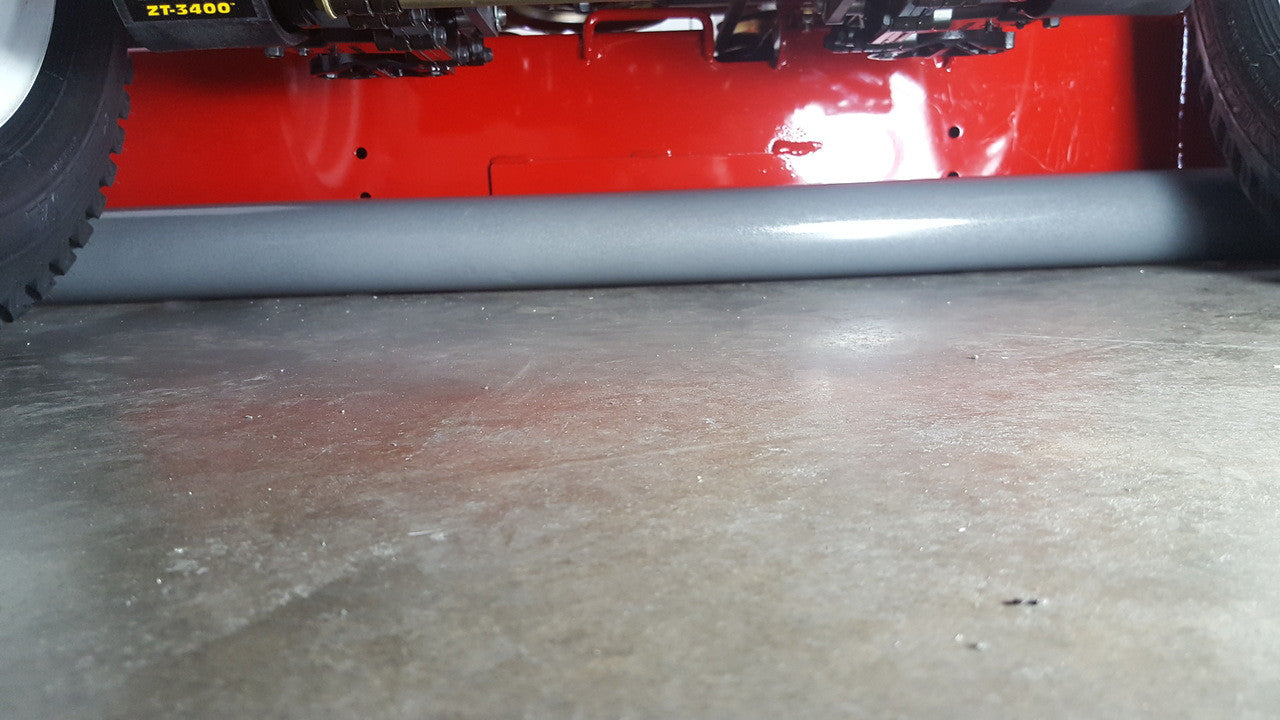

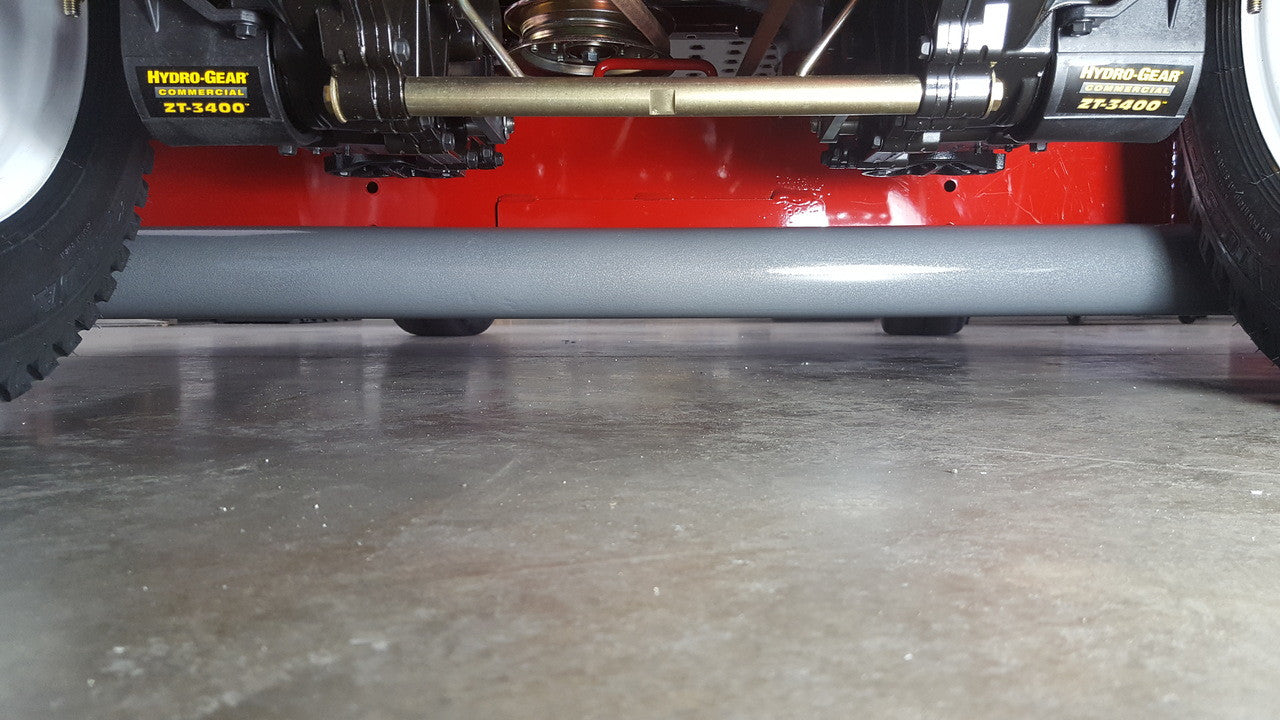

The pre-drilled holes are not wide enough to mount a roller in between the tires. The roller would be too short, leaving space un-striped between the roller and the tires.

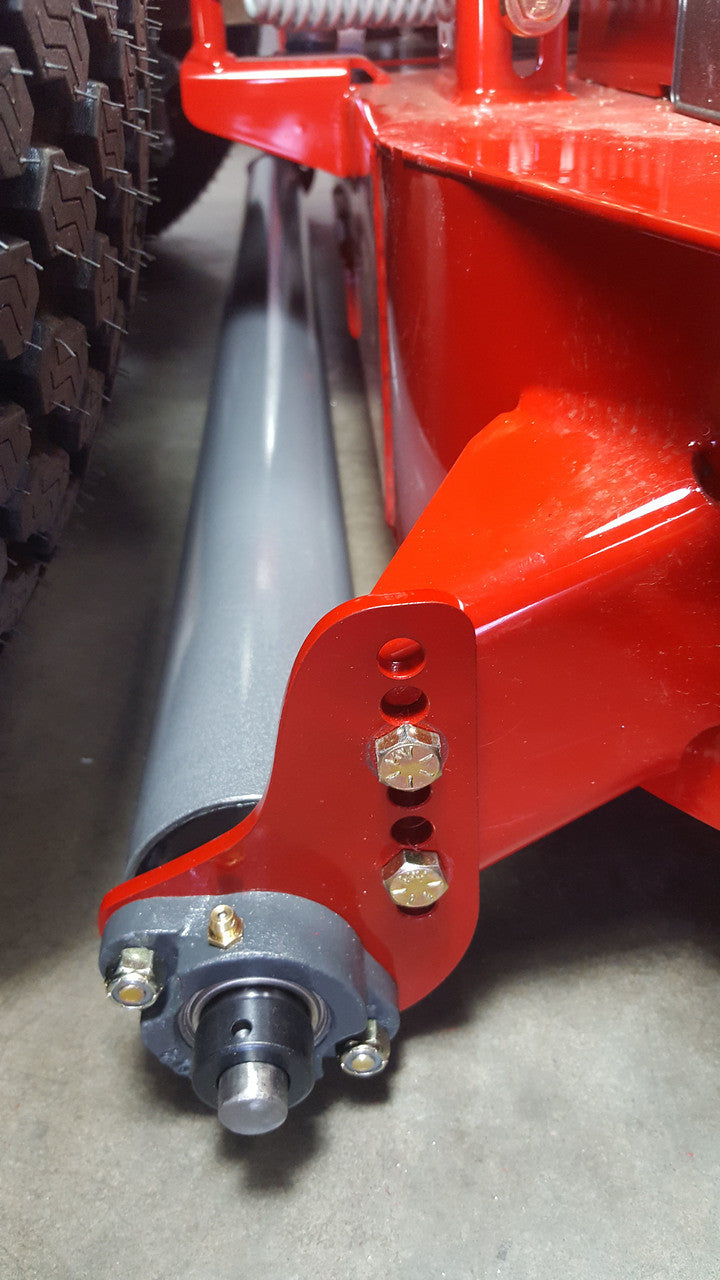

Bolting to the rear anti-scalp wheel brackets means this kit can be installed without any deck modifications AND installed without removing the tires.
The grease zerks on the bearings will be easily accessible to be greased for long bearing life.
(Fits model number RAS720CKC52300)
This lawn striper kit will ONLY fit the eXmark RADIUS S-Series machines with 52" Ultra Cut Series 3 Deck.
Made in Ramsey Minnesota by Harrison Specialties - Manufacturing aftermarket turf stripers since 2006 with thousands in service. Customer service and technical inquiries always welcome. Please email or text/call 763-201-8984.

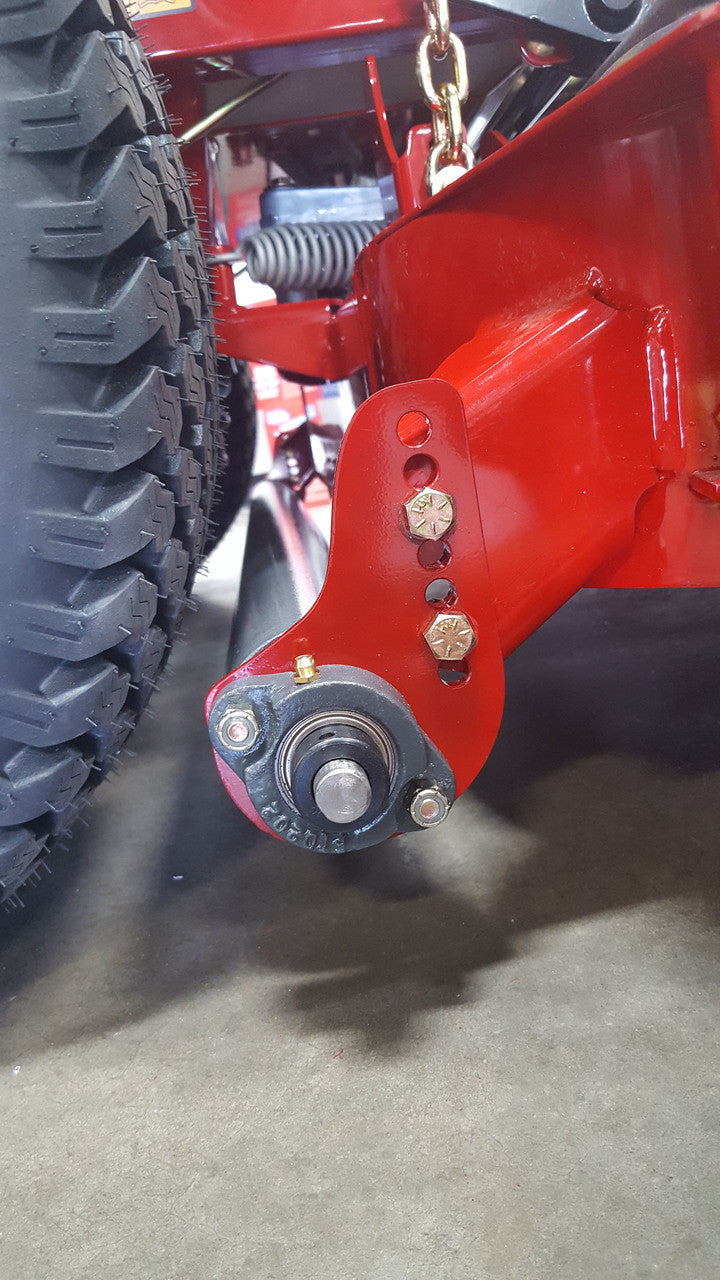

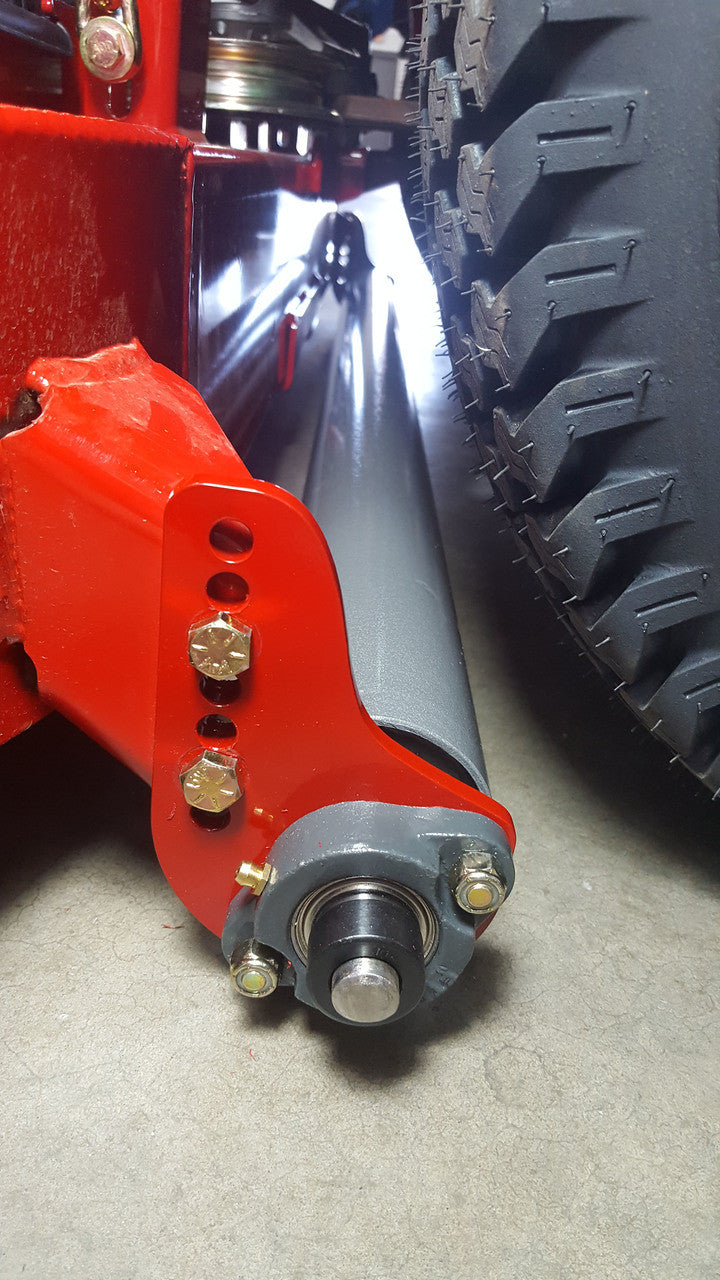

Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
All steel welded roller construction. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
Bolts are hardened grade 8
Nuts are hardened grade 8 with nylon locking inserts.
Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.
Other Features
Does not hinder the ability to scale curbs.
This striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
Gives lawns that professionally striped ball park look.
Now you can mow and roll in one operation.
Please measure your deck to insure the proper fit.
