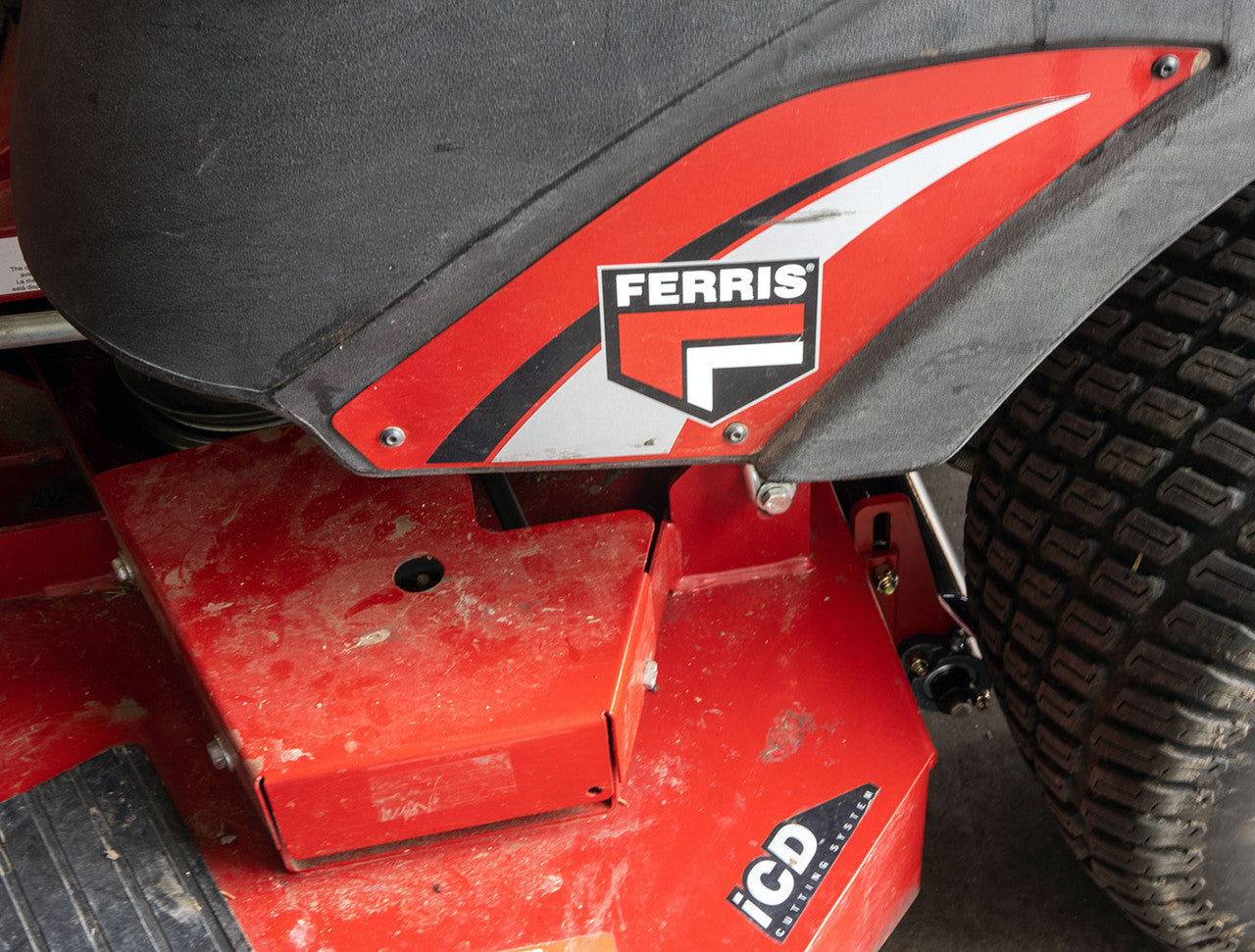

Lawn Striping Kit for 2017 Ferris IS700Z wtih 52" ICD mowing deck

Lawn Striping Kit for 2017 Ferris IS700Z with 52" ICD mowing deck.

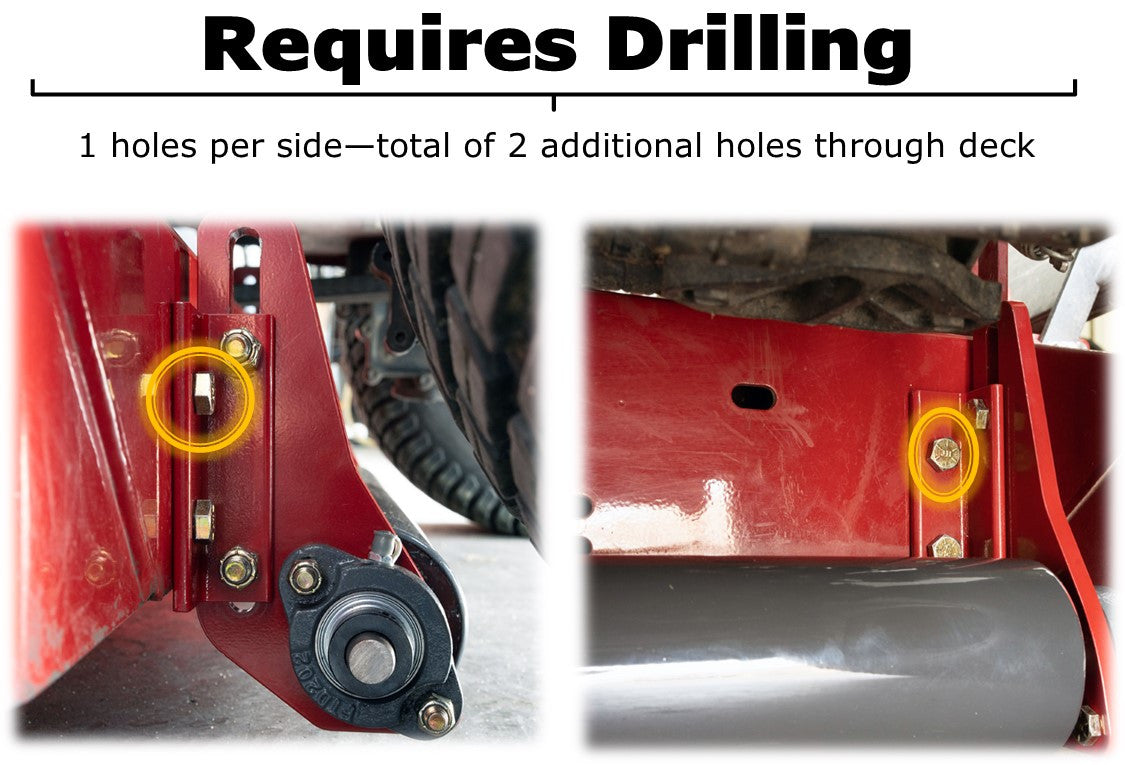

This kit requires using 2 of the outer existing holes in the deck, plus drilling 2 new holes through the deck. Watch the installation video HERE.

Will this fit your machine??? Measure the distance between the outermost 2 holes on the back of the deck. That distance should be 30".

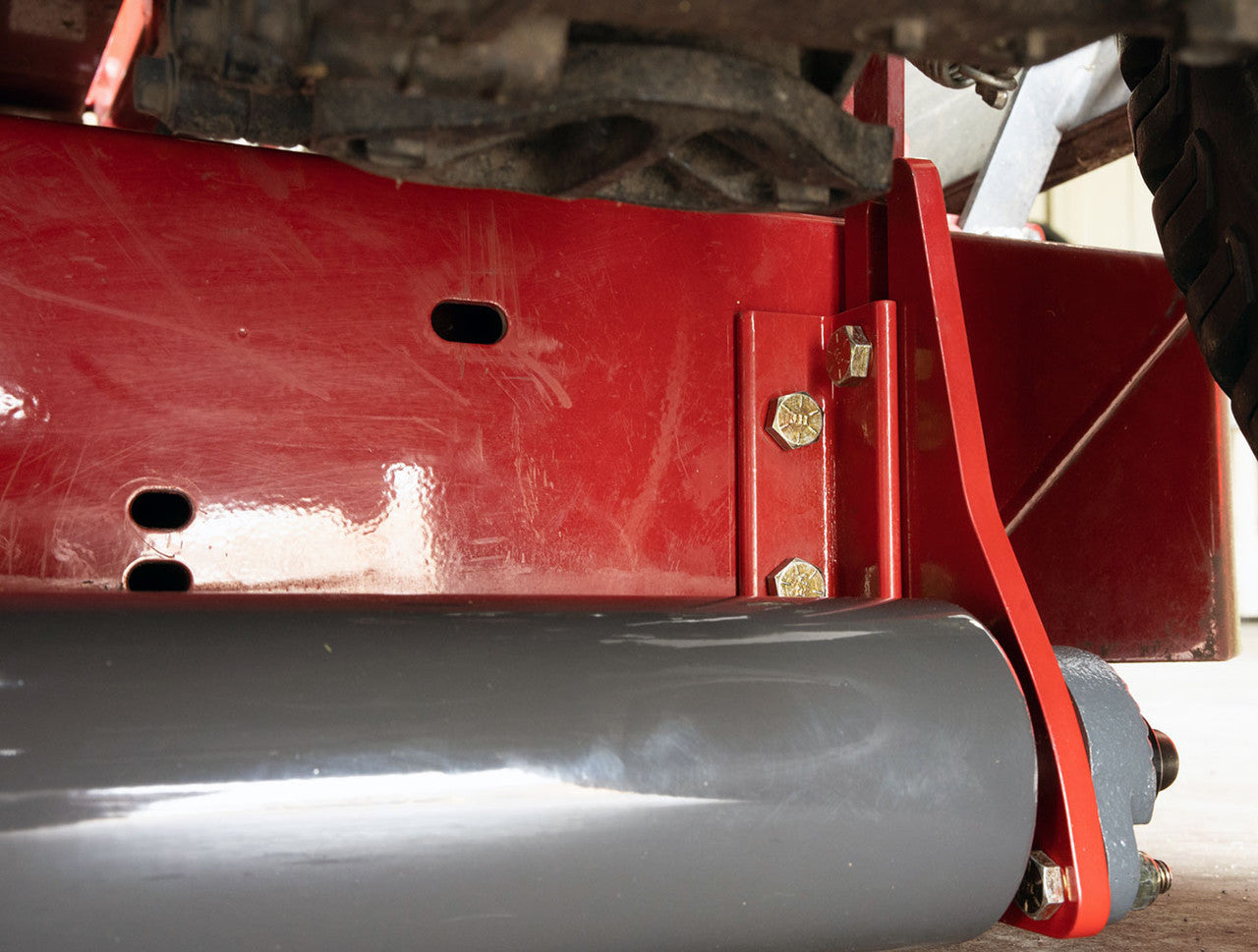

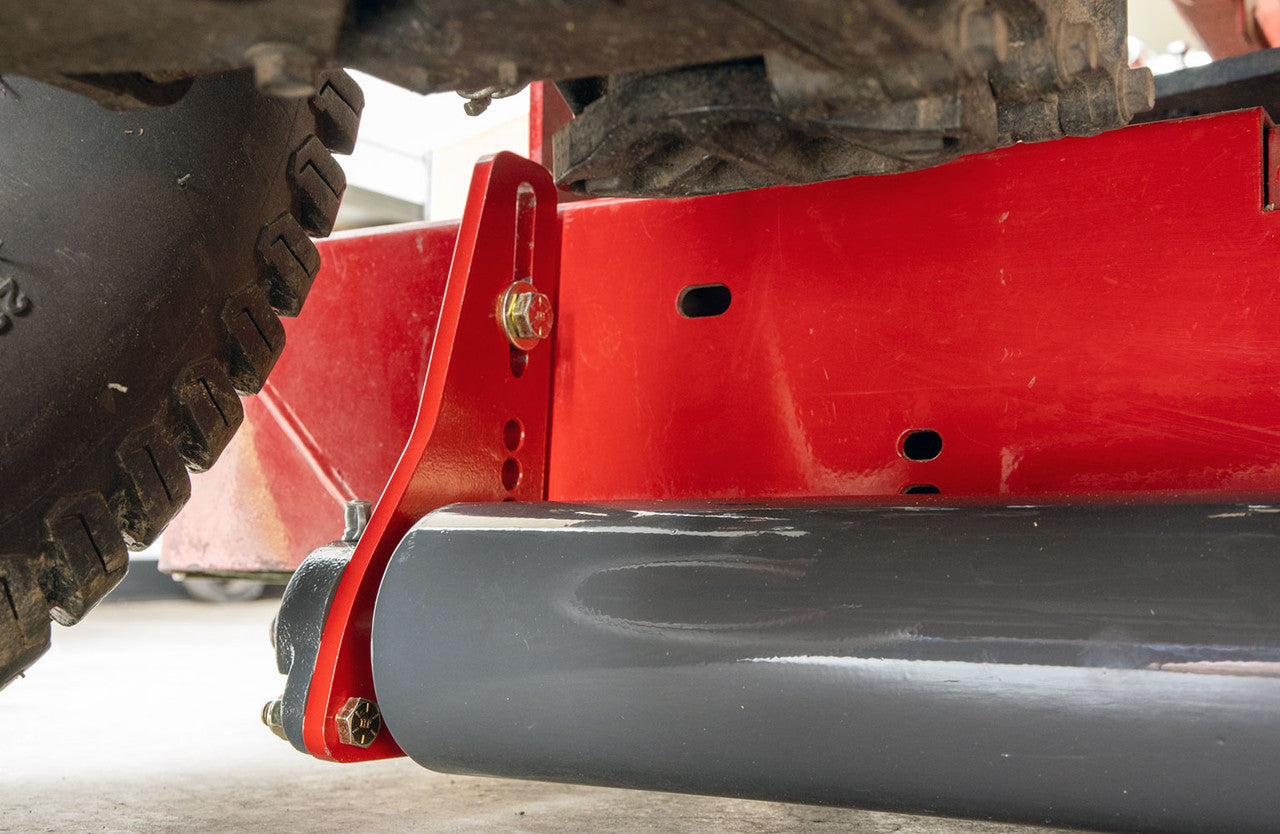

• Bolts directly to the mower deck and requires drilling 2 additional holes.
• Complete kit - everything needed to mount to the deck (brackets, roller, bearings, nuts/washers/bolts)

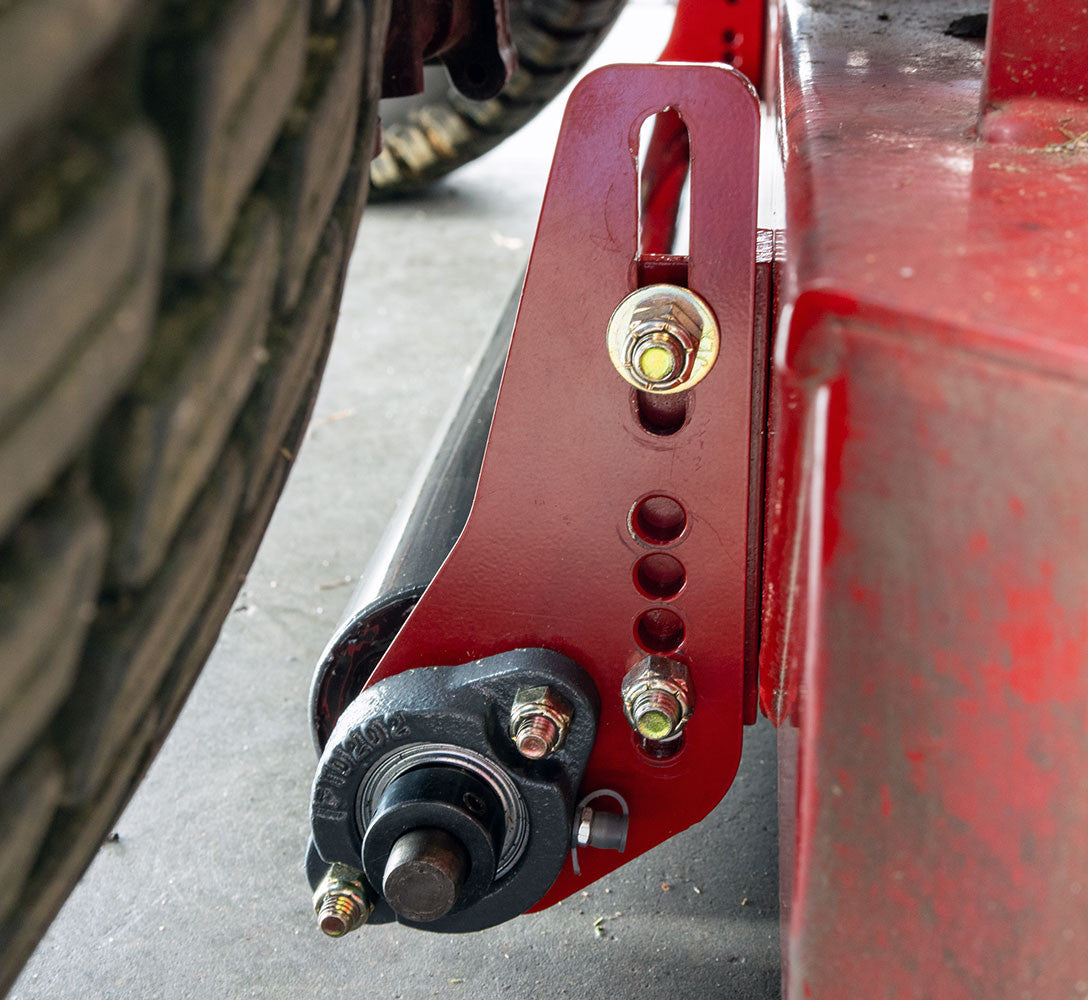

• Roller adjusts vertically 2 inches in half inch increments.
• Recommended lowest mowing height is 3". When the deck is lowered below 3" and the striping kit is in the highest position, it can come in contact with the tires when raised to transport. The longer the grass, the better the stripe.

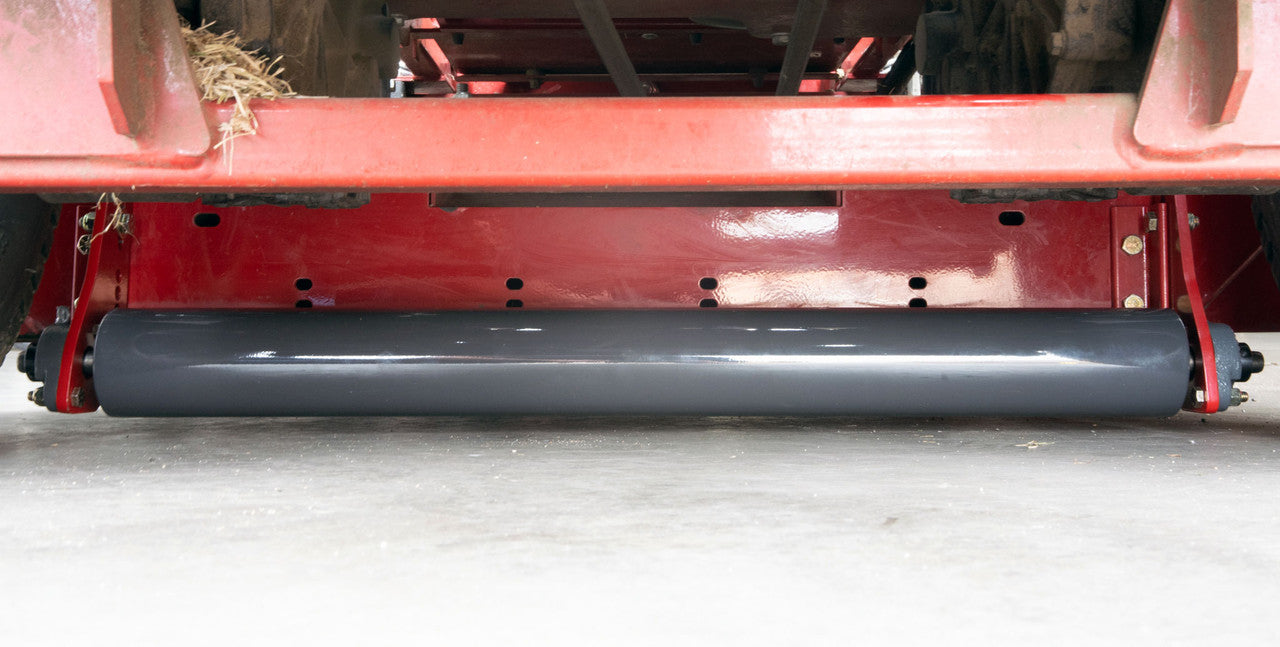

Dimensions: Mounting Shaft: 34" - Roller is 3" diameter by 29" length.

Special Features

• Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.

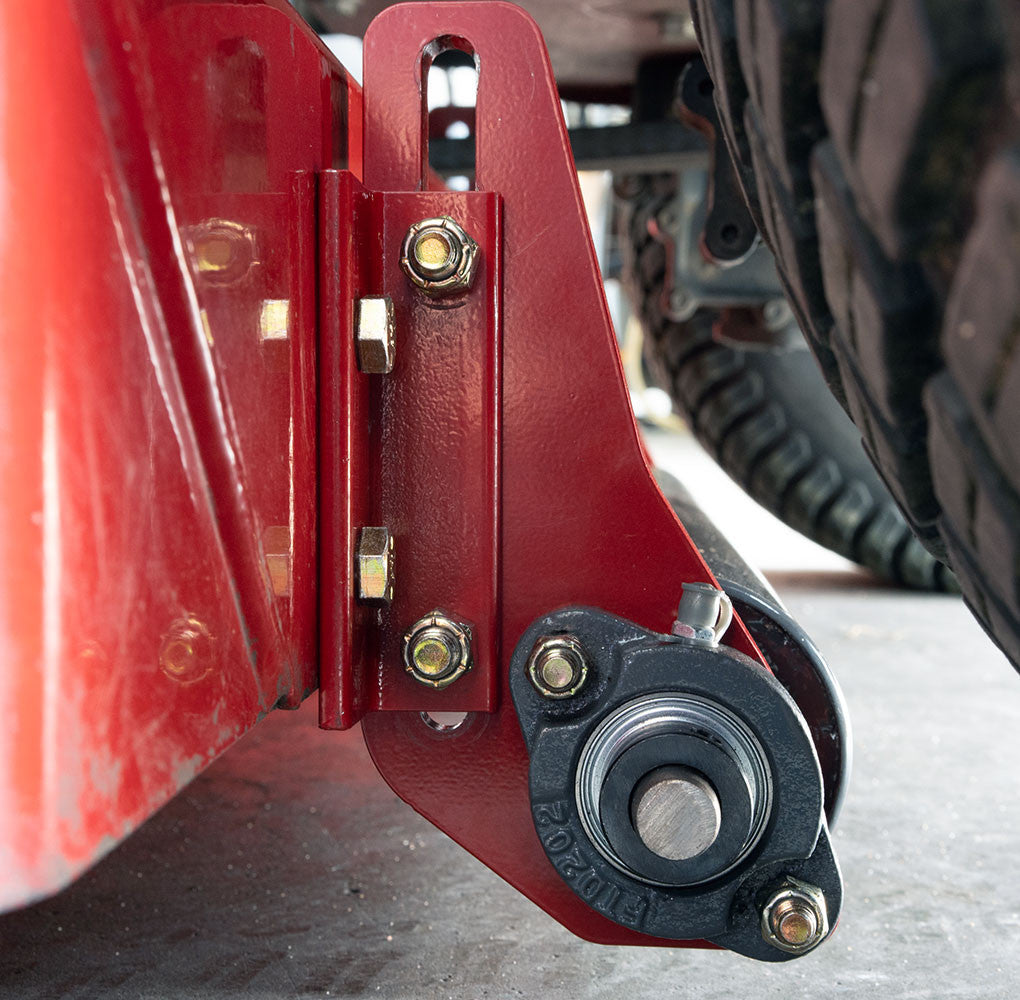

• Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
• All steel welded roller construction with powder coated finish. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
• Bolts are hardened grade 8
• Nuts are hardened grade 8 with nylon locking inserts.
• Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.

Other Features

• Does not hinder the ability to scale curbs.
• This lawn striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
• Gives lawns that professionally striped ball park look.
• Now you can mow and roll in one operation.
