Pre-2009 eXmark Lazer HP with 48" Deck Lawn Striper Kit

Pre-2009 eXmark Lazer HP with 48" Deck Lawn Striper Kit

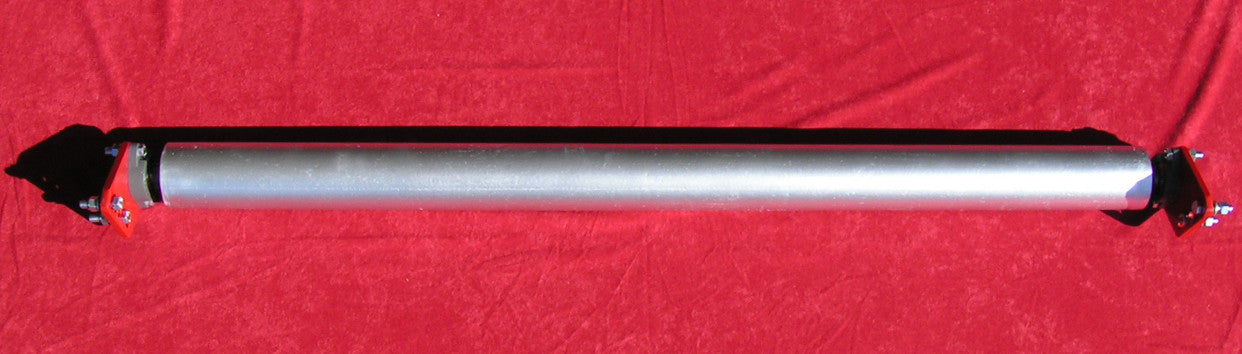

Dimensions: Mounting shaft 37" length - Roller 3 inch diameter by 32" length.

Will it fit?

1. Fits pre-2009 models with anti-scalp wheel brackets on the deck spaced approximately 37" apart.
2. Your mower deck must have rear anti scalp wheel brackets with 37" spacing between them.
3. If you have spacing other than 37", this will not fit.
4. If you do not have rear anti scalp wheel brackets, there's nothing to bolt to so this won't work.


This lawn striper will not fit: Triton decks all years - Turf Tracer with ultra cut decks all years - Advantage series 6 ultra cut decks all years.

Made in Ramsey Minnesota by Harrison Specialties - Manufacturing aftermarket lawn striper kits since 2006 with thousands in service.

Customer service and technical inquiries always welcome. Please email or text/call 763-201-8984.

Special Features

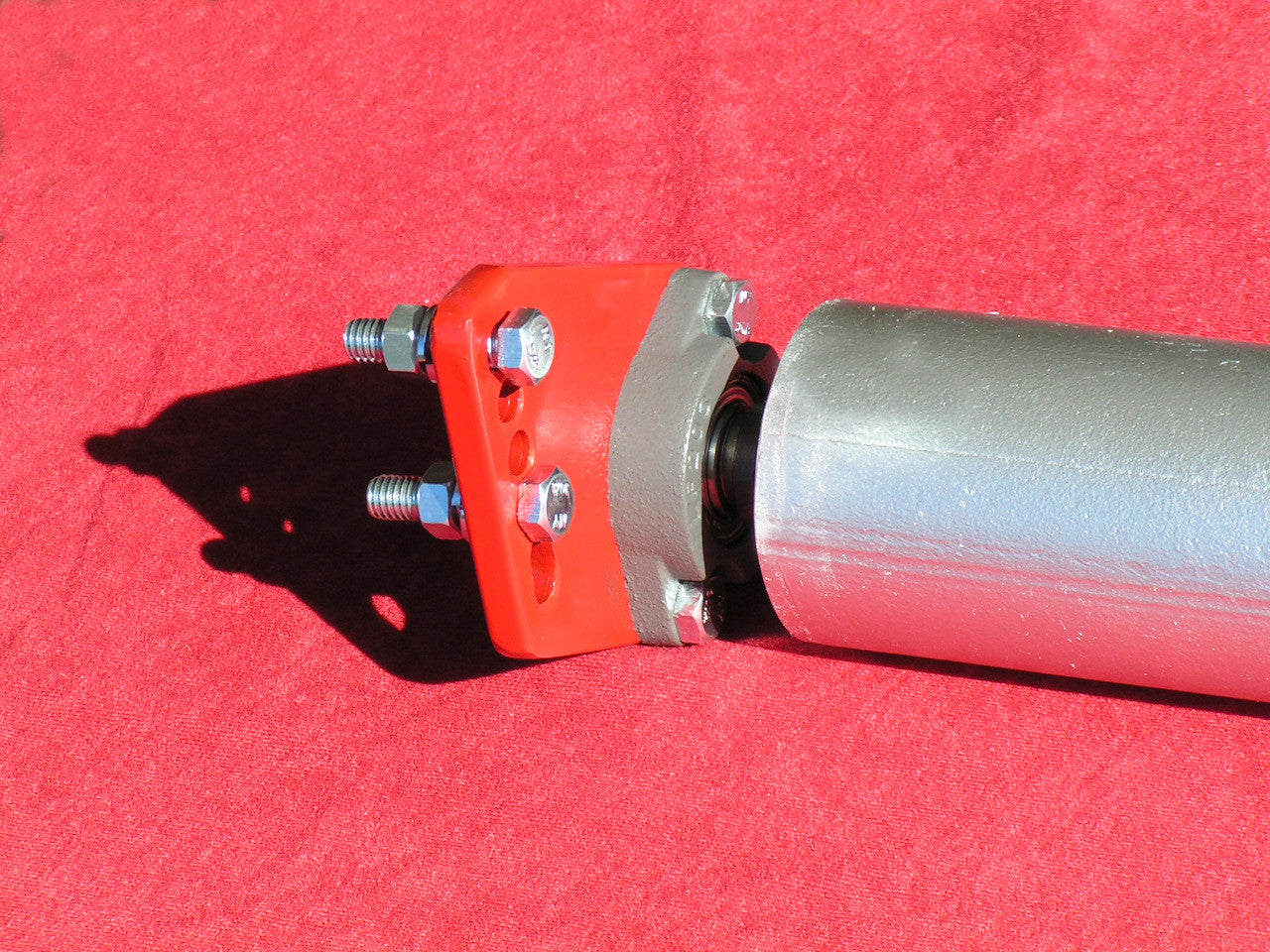

• Premium quality greaseable sealed bearings. Sealed bearings that are greased regularly offer the longest possible service life.
• Virtually indestructible ductile iron bearing mounting flanges. Specifically designed for use in this type of application. We are not aware of a single bearing flange that has ever failed and we have thousands in use. They cost a bit more than conventional cast iron flanges but are more than worth the price.
• All steel welded roller construction. We are very particular about how our rollers are designed internally and their construction. Our many repeat customers purchasing stripers for new machines attest to the quality of our rollers. Actually we are quite proud of how well our rollers have performed since we began manufacturing them back in 2006.
• Bolts are hardened grade 8
• Nuts are hardened grade 8 with nylon locking inserts.
• Mounting instructions, CNC laser cut powder coated brackets and all hardware is included.

Other Features

• Does not hinder the ability to scale curbs.
• This lawn striper enhances the striping performance of your mower to produce a beautifully manicured lawn.
• Gives lawns that professionally striped ball park look.
• Now you can mow and roll in one operation.
• Mounts on the mower deck anti-scalp wheel brackets.
• Please measure your deck to insure the proper fit.

Please make special note of the following:

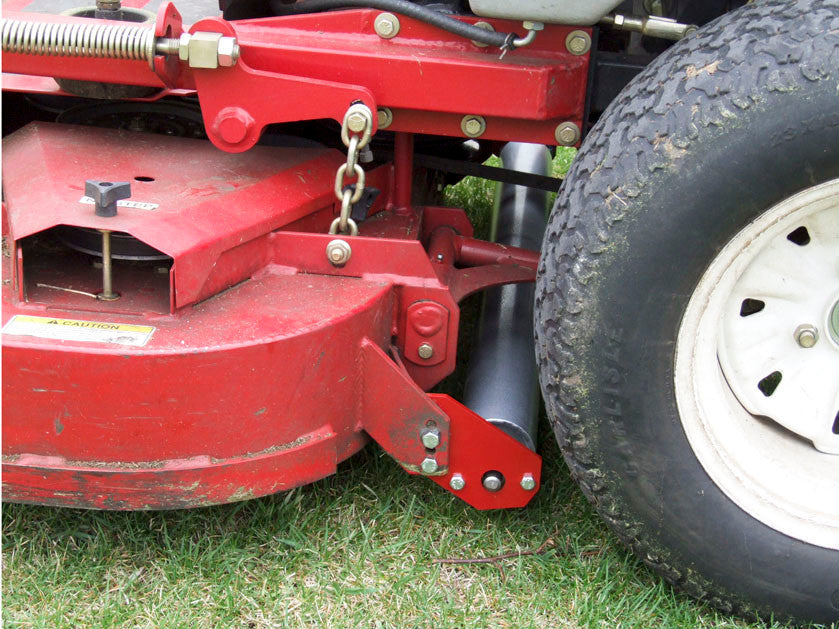

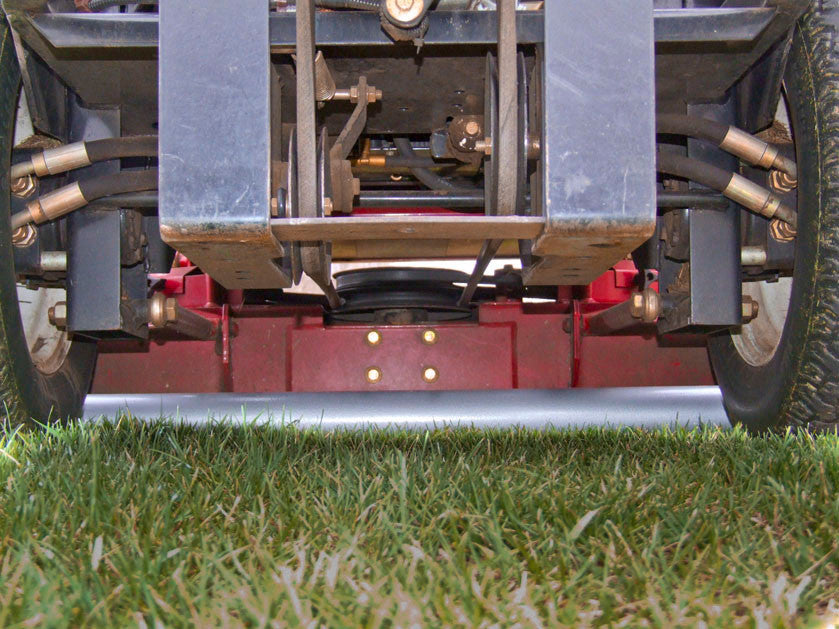

Mounts on the mower deck anti-scalp wheel brackets as shown in the accompanying photos. If your mower deck does not have anti-scalp wheel brackets it cannot be mounted on your mower.

Special thanks to Turf Enterprises Inc., they sent the photos shown here demonstrating the results of our lawn stripers on their customers rolling lawn. They are running our lawn stripers on a 60" and 52" eXmark Lazer Z with Ultra Cut mowers.
